Description

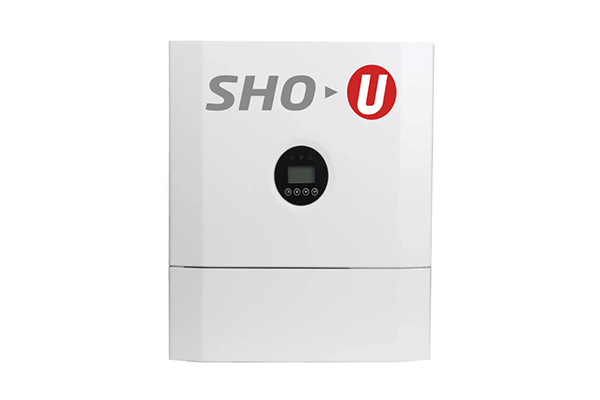

| Inverter Model | BluESS-5KT |
|---|---|
| PV String Input | |
| Nominal Voltage | 400V |
| Starting Voltage | 130V |
| Max. PV Efficiency | 97.6% |
| Number of MPP Tracker | 2 |
| AC Output (Grid) | |
| Power Type | Single Phase |
| Nominal AC Output Power | 5000W |
| Nominal AC Voltage | 230Vac |
| AC-Grid Frequency Range | 50~60Hz ± 5Hz |
| Battery Input | |
| Battery Tyep | LiFePO4 (LFP) |
| Nominal Battery Voltage | 48V |
| Battery Capacity | 100Ah |
| AC Output (Backup) | |
| Max. AC Apparent Power | 5000VA |
| Peak AC Apparent Power | 6900VA (10sec) |
| Nominal Output Voltage | 230V ± 0.2% |
| Nominal Output Frequency | 50/60Hz ± 0.2% |
| General Specification | |
| Size | 540*590*240mm |
| Weight | 32kg |
| Cooling Type | Natural convection |
| Protection | IP65 |
| Communication | RS485 / CAN2.0 / Wi-Fi / 4G |
| Management Interface | LCD / APP |
| Certification & Standard | IEC/EN 62109-1&2, 61000-6-1/2/3/4, 61000-3-11/12, 60529, 60068, 61683, 62116, 61727, 62619, EN50549-1; AS4777.2; NRS-097; VDE-AR-N-4105; CEI0-21; G98/99; C10/11 |
